Mount Daynaport

These instructions were adapted from the RaSCSI wiki

Use the commandline since attaching the proxyARP-bridged Daynaport through the web interface returns an error.

sudo rasctl -i 5 -c attach -t scdp -f eth0:192.168.3.0/24

Verify ~/.config/rascsi/default.json file

{
    "version": "22.7.2",
    "devices": [
        {
            "id": 4,
            "unit": 0,
            "device_type": "SCDP",
            "image": null,
            "params": {
                "inet": "192.168.3.0/24",
                "interface": "eth0"
            },
            "vendor": "Dayna",
            "product": "SCSI/Link",
            "revision": "1.4a",
            "block_size": null,
            "size": 0
        },
        {
            "id": 6,
            "unit": 0,
            "device_type": "SCHD",
            "image": "/home/pi/images/HD0-OpenRetroSCSI-7.5.3.hda",
            "params": {},
            "vendor": "QUANTUM",
            "product": "FIREBALL",
            "revision": "2207",
            "block_size": 512,
            "size": 524288000
        }
    ],
    "reserved_ids": [
        {
            "id": "7",
            "memo": ""
        }
    ]
}

Confirm ras0 bridge is present. Will show up as 'degraded' and 'unmanaged' but actually works

networkctl

IDX LINK          TYPE     OPERATIONAL      SETUP
1 lo            loopback carrier          unmanaged
2 eth0          ether    no-carrier       configuring
3 rascsi_bridge bridge   degraded-carrier configured
4 wlan0         wlan     routable         configured
6 ras0          ether    degraded         unmanaged

brctl show

bridge name         bridge id           STP enabled   interfaces
rascsi_bridge       8000.36873c9d0b82   no             eth0
                                                       ras0

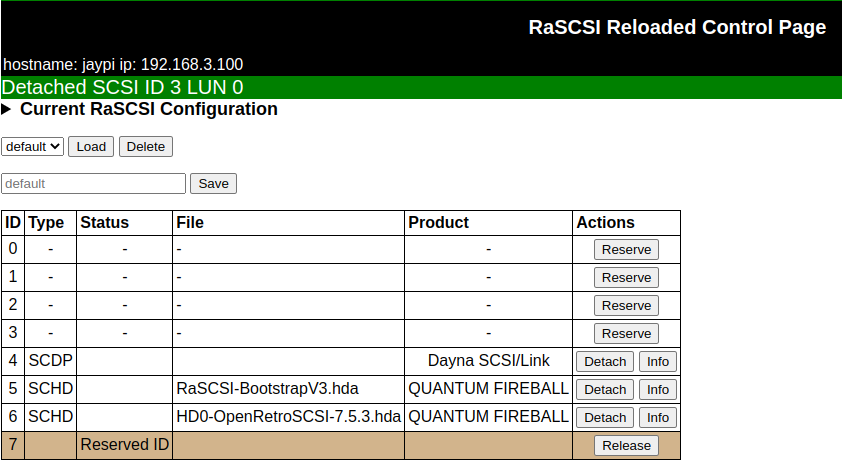

screenshot
